产品描述 Product Description

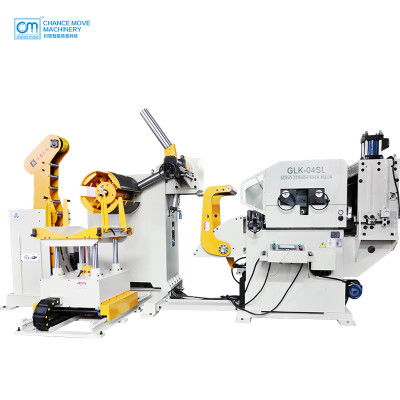

GLK4 可掀开式高涨力板材专用三机一体式开卷整平送料机 Three - machine integrated uncoiling and leveling feeder special for uncoiling high-strength plate
产品特点 Product Features
1.创新的机械结构,使全机所需空间缩至最小。
Working space will be minimized by innovative structure of the machine.

2.操作面板采用彩色液晶显示器,大尺寸的触摸屏,高清晰的操作画面,配合操作安全系统,即便是初次使用者也能安心操作。
The operation panel adopts color liquid crystal display, large size touch screen, high clear operation picture, and operation safety system, so that even first-time users can operate at ease.

3.健全的操作系统人性化设计,将准备工作缩短,先进的自动诊断系统,协助操作者快捷掌控本机的卓越性能。
Sound operating system user-friendly design will shorten the preparatory work and advanced automatic diagnosis system, to help operators quickly control the outstanding performance of the machine.

4.采用进口伺服系统,确保高精度送料。
Imported servo system and ensures high precision feeding.

5.送料滚轮及整平滚轮经特殊热处理,硬度高(HRC62°)耐磨,寿命长。
Feeding roller and leveling roller by special heat treatment, high hardness ( HRC62 °) wear resistance, long service life.

6.特别为强力厚板而设计的上下整平背压滚轮组,可达到保证的应力消除效果。(图片)
Specially designed for the strong thick plate up and down leveling back up roller set, can achieve the guaranteed stress elimination effect.

7.将安全系数增强一倍的设计理念,令设备安全使用寿命更加延长。
The design concept of doubling the safety factor can prolong the safe service life of the equipment.

8.多样的几种选择,更适合冲床大小及作业的需求。若有特殊规格需求,本公司亦可承制。
Various options are available for different sizes of punching machines and operational requirements.Special standard is also accepted.
1.台车 Coil Car
开卷机主轴扩缩结构平稳地移动到固定的待料台车上,上料台车固定不移动,材料架移动上扩张后退回原始位正常运作
The hoisting machine main shaft expansion and contraction structure is smoothly moved to the fixed waiting coil car, and the loading coil car is fixed and does not move.The material frame moves up and then returns to the original position for normal operation.
2.料架主轴  Decoiler Mandrel
材料架移动至台车处上料后退回原始位,并且根据要求把材料按照要求做间隙性转动放料的平台
The material frame is moved to the trolley and returned to the original position, and the material is required to make the gap rotation and discharge according to the requirements.
3.压料臂   Pressing Arm
运行中压紧材料,防止料卷散料,自动运行过程中,压料轮会随着材料外径的改变自动调整速度,使压料轮与料卷的线速度完全匹配,杜绝料卷的散开。
During the operation, the material is compacted to prevent the material roll from scattering. During the automatic operation, the material pressing wheel will automatically adjust the speed along with the change of the outer diameter of the material, so that the linear velocity of the material pressing wheel and the material roll is completely matched to prevent the material roll from scattering.
4.限位辊  Coil Limiting Arms
位于料架左侧,用于料卷的宽度定位,外侧辊可打开,方便料卷进入扩缩机构,限位辊必须处于关闭状态才能进行自动运行功能
Located on the left side of the material rack and used for positioning the width of the material roll, the outer roller can be opened to facilitate the material roll to enter the expansion and contraction mechanism, and the limit roller must be closed to perform the automatic operation function

5.入料口  Straightener Inlet
用于材料料头进入整平机的导正,使材料平顺地进入整平装置
It is used to guide the material head to enter the leveling machine so that the material can smoothly enter the leveling device

6.控制面板   Control Board

7.整平部分  Straightening Part
辊轮材质采用优质轴承钢,经过硬化处理,硬度可达到 HRC60±2
The roller material is made of high quality bearing steel and hardened to achieve HRC60±2 hardness.
8.手轮  Handwheel
矫正量调整用手幅轮调整,偏心轴端带刻度盘做显示
Correction amount adjustment with hand width adjustment, eccentric shaft end with dial for display

9.出料口托料架  Outlet Support Bracket
用于定尺送料后与模具之间的平顺传送,托料架上安装优质进口耐磨福来轮
It is used for the smooth transfer between the fixed feeding and the mold, and the high-quality imported wear-resistant Fulai wheel is installed on the supporting frame.
规格参数 SPECIFICATION PARAMETER
型号Model
GLK04-600H
GLK04-800H
GLK04-1000H
GLK04-1300H
适用材料宽度Width of Material(mm)
70-600
70-800

70-800

70-1300

适用材料厚度Thickness of Material(mm)
0.6-6.0
0.6-6.0
0.6-6.0
0.6-6.0
最大料重Max Coil Weight(kg)
5000
5000/7000
7000
7000
卷料内径Coil I.D(mm)
508
508
508
508
最大卷料外径 Max Coil O.D.(mm)
1400
1400
1400
1400
最大送料长度Max Feeding  Length(mm)
~500※
~500※
~500※
~500※
送料速度Max.line Speed(m/min)
16-24
16-24
16-24
16-24
矫正滚轮Working Rollers
5 on top/4 on bottom
5 on top/4 on bottom
5 on top/4 on bottom
5 on top/4 on bottom
送料滚轮Feeding Rollers

1组

1组

1组
1组
伺服马达 Main Motor(kw)
AC7.5
AC11
AC11
AC15
料架扩张方式(Uncoil Expansion)
油压Hydraulic
油压Hydraulic
油压Hydraulic
油压Hydraulic
使用电压Power(V)
2.2
2.2  3.7
3.7
3.7
料架马达Uncoil Motor(kw)
200/220
200/220
200/220
200/220
使用空气压Operating Air (Mpa)
0.49
0.49
0.49
0.49
矫正能力 CORRECTION ABILITY
型号Model
GLK04-600H
GLK04-800H
GLK04-1000H
GLK04-1300H
板厚(mm)Stock Thickness
0.8~2.3
600
800
1000
1000
2.5
933
933
2.8
920
920
3.2
714
714
714
4.0
457
457
457
457
4.5
361
361
361
361
5.0
293
293
293
293
4.56.0
203
203
203
203
上表中的降服点应力为245N/mm² The above figures are the material having yield strength of 245N/mm² max
矫正能力 CORRECTION ABILITY
型号Model
GLK04-600H
GLK04-800H
GLK04-1000H
GLK04-1300H
板厚(mm)Stock Thickness
2.5
255
252
250
146
2.8
205
203
202
199
3.2
177
175
174
171
4.0
138
136
135
133
4.5
120
119
118
116
5.0
106
105
104
103
6.0
81
81
81
81
上表中的降服点应力为600N/mm² The above figures are the material having yield strength of 600N/mm² max
