产品描述 Product Description

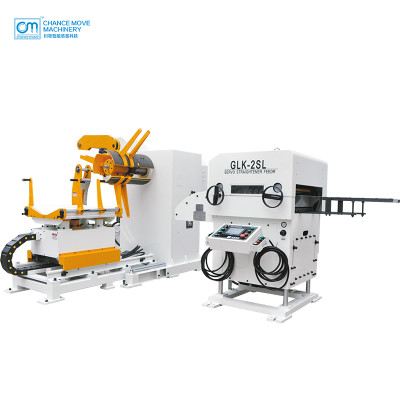

GLK2 薄板专用三机一体式开卷整平送料机 Special for thin plate type 3-in-1 servo decoiler straightener feeder machine
产品特点 Product Features
1.适用于最大材料宽度800mm以内,最大厚度3.2mm以内的卷料使用。本机集开卷整平送料三机一体,创新的机械结构,使全机所需空间缩至最小。
It is suitable for coil material with maximum material width of 800mm and maximum thickness of 3.2mm. This machine is integrated with uncoiling and leveling feeding three machines and working space will be minimized by innovative structure of the machine.

2.采用人机界面,操作简单,方便送料。
Human-computer interface is adopted to simplify operating and ease of feeding.

3.采用进口伺服系统,确保高精度送料。
Imported servo system and ensures high precision feeding.

4.送料滚轮及整平滚轮经特殊热处理,硬度高(HRC62°)耐磨,寿命长。
Feeding roller and leveling roller by special heat treatment, high hardness ( HRC62 °) .

5.多样的机种选择,更适合冲床大小及作业的需求。若有特殊规格需求,本公司亦可承制。
Various options are available for different sizes of punching machines and operational requirements.Special standard is also accepted.
1.台车 Coil Car
把材料安全平稳地移动到开卷机主轴扩缩结构上,在开卷时用来托起材料,方便料带能够顺利地进入整平机,台车装备防止料卷倾倒机构,用于移动较窄料卷。
The material is safely and smoothly moved to the main shaft expansion and contraction structure of the uncoiler to support the material during uncoiling so as to facilitate the material belt to smoothly enter the leveler, and the trolley is equipped with a material roll dumping prevention mechanism for moving narrower material rolls.
2.料架主轴  Decoiler Mandrel
用于将料卷固定在料架主轴的扩缩部位上,支撑料卷内径的支撑台,自动运行中通过料环控制指令让主轴间歇式转动开卷放料。
Used to fix the material roll on the expanded and contracted position of the main shaft of the material rack, a support table supporting the inner diameter of the material roll, and to make the main shaft rotate intermittently to uncoil and discharge material through the material ring control instruction during automatic operation.
3.压料臂   Pressing Arm
压紧材料同时防止料卷在去除束带后的松散,在自动运行的过程中防止料卷散开。
Compacting the material also prevents the material roll from loosening after the band is removed, and prevents the material roll from unraveling during automatic operation.
4.入料口  Coil Inlet
用于料卷的宽度定位,操作简便
It is used to position the width of the material roll and is easy to operate

5.控制面板   Control Board
控制系统中关键机械零部件和电子组件等均采用日本或欧美知名品牌产品,使得产品的核心技术得以监控
The key mechanical parts and electronic components in the control system are all made of famous brands in Japan or Europe and America, so that the core technology of the products can be monitored
6.矫正轮  Straightening  rollers
所有的矫正轮采用Gcr15高碳铬轴承钢,用于矫正材料表面平整,并根据设定长度和速度将材料送料冲压设备
All correction wheels adopt GCR 15 GCr15 steel, which is used to correct the surface smoothness of the material and feed the material to the stamping equipment according to the set length and speed.
7.手轮  Handwheel
用于手动调整矫正量
For manually adjusting the correction amount


8.涂油装置  Optional Lubrication Unit
托料架上安装电镀硬铬滚筒,保证料带在定尺以后到模具之间的可靠传送。
A hard chrome plating roller is installed on the material support frame to ensure the reliable transfer of the material belt to the mold after the fixed length.
9.出料口托料架  Outlet Support Bracket
用于材料表面的涂油工作,并且涂油量以及涂油间隔实现电子控制以及可调式
It is used for oiling the surface of the material, and the amount of oiling and oiling interval are electronically controlled and adjustable
规格参数 SPECIFICATION PARAMETER
型号Model
GLK2-300
GLK2-400
GLK2-500
GLK2-600
GLK2-800
料宽Width of Material(mm)
50-300
50-400
50-500
50-600
50-800
料厚Thickness of Material(mm)
0.3-3.2
0.3-3.2
0.3-3.2
0.3-3.2
0.3-3.2
最大料重Max Coil Weight(kg)
2000
2000
3000
5000
5000
卷料内径Coil I.D.(mm)
508
508
508
508
508
卷料外径 Coil O.D.(mm)
1200
1200
1200
1200
1200
最大送料速度Max.line Speed(m/min)
16
16
16
16
16
标准送料精度Standard Feeding Accuracy(mm)
±0.2
±0.2

±0.2

±0.2

±0.2

矫正滚轮Working Rollers
6 on top/5 on bottom
标准送料高度Standard Feeding Level(mm)
1200±100
1200±100
1200±100
1200±100
1200±100
电源电压Power(V)
380VAC 60HZ
380VAC 60HZ
380VAC 60HZ
380VAC 60HZ
380VAC 60HZ
空气压Operating Air(kg/cm²)
5kg/cm²
5kg/cm²
5kg/cm²
5kg/cm²
5kg/cm²
料架扩张方式(Uncoil Expansion)
气压Pneumatic
伺服马达 Main Motor(kw)
AC2.9
AC2.9
AC4.4
AC4.4
AC5.5
料架马达Uncoil Motor(kw)
AC0.75
AC1.5
AC1.5
AC2.2
AC2.2
矫正能力 CORRECTION ABILITY
型号Model
送料厚度 Thickness
0.3
1.0
1.3
1.6
2.0
2.3
2.5
2.8
3.2
送料宽度(mm)Width
GLK2-300
300
250
GLK2-400
400
250
GLK2-500
500
250
GLK2-600
600
230
GLK2-700
700
200
GLK2-800
800
180
上表中的降服点应力为245N/mm² The above figures are the material having yield strength of 245N/mm² max
案例 Application

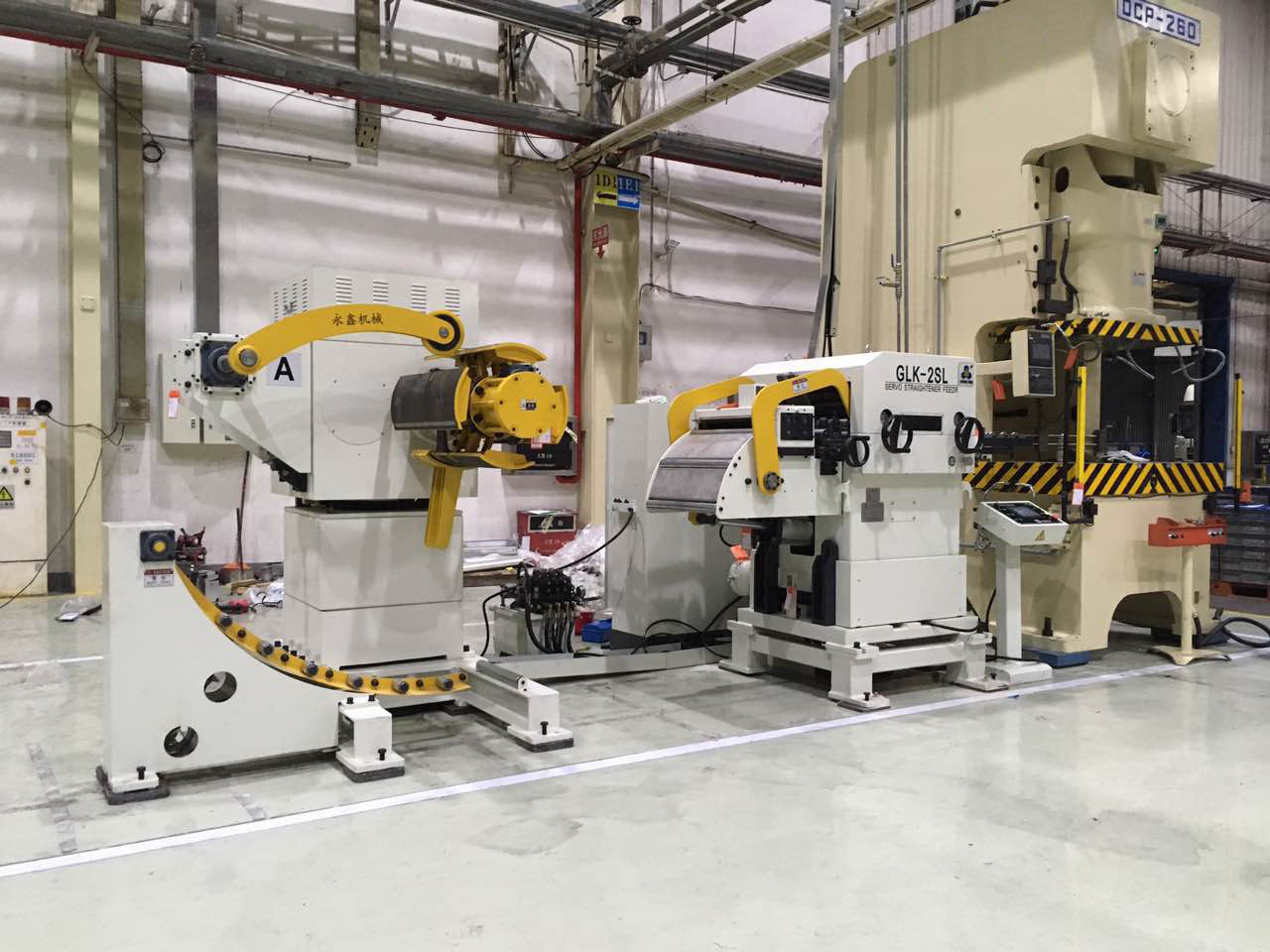

GLK2-600广州三五
