重型开卷机（材料架） Heavy-duty uncoiler (material rack)
| 产品目录 | 材料架系列 (Decoiler Machine) |
|---|---|
| 画册 | 查看大图 |
| 品牌 | 川牧智能 |
| 产品规格 | MT |
| 更新时间 | 2020-04-05 |
详细信息
产品描述 Product Description

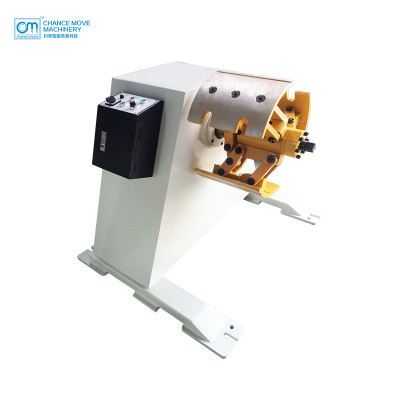

MT 重型开卷机（材料架） Heavy-duty uncoiler (material rack)
产品特点 Product Features
1.适用各种卷料之送料和收料，薄板金属及非金属材料均可。
Suitable for all kinds of coil material feeding and receiving, sheet metal and non-metallic materials.
2.刹车装置松紧可调，主轴采用加强型，使材料卷轴转动更平顺，并增加负荷力。
The brake device is adjustable in tightness, and the spindle adopts the reinforced type, which makes the material reel rotate more smoothly and increases the load force.
3.采用进口零件，故障少，寿命长。
Adopt imported parts, less failure, long life.
4.扩张方式可选择手动扩张或油压扩张，可加装压料臂，变频调速，台车等。
Expansion mode can choose manual expansion or hydraulic expansion, can add pressure arm, variable frequency speed regulation, trolley, etc.
5.可根据材料情况进行定制。
Can be customized according to the material situation.
规格参数 SPECIFICATION PARAMETER
型号Model | MT-200 | MT-300 | MT-400 | MT-500 | MT-600 |
卷料宽度Width of material(mm) | 200 | 300 | 400 | 500 | 600 |
卷料厚度Thickness of material(mm) | 0.1-3.0 | ||||
材料内径Coil I.D.(mm) |
450-530 |
||||
材料外径Coil O.D.(mm) | 1200 | ||||
最大卷重Max Coil Weight(kg) | 500 | 1000 | 2000 | 2000 | 2000 |
-
