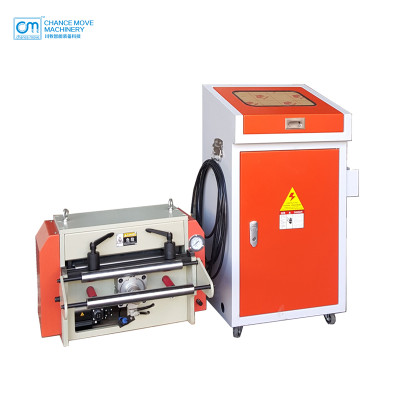

薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)

薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)

薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)
薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)薄板伺服滚轮送料机/RNC-B (Servo roll feeder / RNC-B Series)
产品目录伺服开卷整平送料机GLK系列 (Decoiler Straightener Feeder)
画册查看大图
品牌川牧智能
产品规格RNC-B
更新时间2019-07-18
详细信息
产品描述 Product Description
薄板伺服滚轮送料机/RNC-B RNC-B伺服送料机 (0.4-4.5mm)
产品特点 Product Features
针对中板卷材而设计的型式,在中板卷材的应用上体现出卓越的品质。
通过CCS(电脑控制伺服系统)高精度的实现了以往不可能实现多种数值控制。
本机型可以简单,快速,准确的操作送料设置。
The type designed for the middle plate coil material shows excellent quality in the application of the middle plate coil material.
Through CCS (computer controlled servo system), various numerical controls that were not possible in the past have been realized with high precision.
This machine can operate the feeding setting simply, quickly and accurately.
规格参数 SPECIFICATION PARAMETER
型号Model
RNC-200B
RNC-300B
RNC-400B
RNC-500B
RNC-600B
材料宽度 Width of material (mm)
200
300
400
500
600
材料厚度 Thickness of material (mm)
0.5-4.5
0.5-4.5
0.5-4.5
0.5-4.5
0.5-4.5
最大送料长度 Max . feed length (mm)
9999.99
9999.99
9999.99
9999.99
9999.99
送料精度 Feed pitch accuracy (mm)
±0.2mm
±0.2mm
±0.2mm
±0.2mm
±0.2mm
送料辊 Feed Roll
上辊Ø75mm,下辊/Ø90mmUpper Roll Ø75mm, Bottom Roll Ø90mm
送料速度 Speed (m/min)
20
放松方式 Releasing system
气动式放松系统Pneumatic Type
伺服电机 Servo Motor
日本安川/Yaskawa, Japan
伺服驱动器 Servo Drive
日本安川/Yaskawa, Japan
PLC
日本三菱/Mitsubishi, Japan
触摸屏 Touch Screen
威纶,台湾/Weinview, Taiwan
功率 Power
1.3kw
1.8kw
2.9kw
产品展示 Product Display
