重型材料架 MT-F (Hydraulic Decoiler MT-F)

重型材料架 MT-F (Hydraulic Decoiler MT-F)

重型材料架 MT-F (Hydraulic Decoiler MT-F)
重型材料架 MT-F (Hydraulic Decoiler MT-F)重型材料架 MT-F (Hydraulic Decoiler MT-F)重型材料架 MT-F (Hydraulic Decoiler MT-F)重型材料架 MT-F (Hydraulic Decoiler MT-F)重型材料架 MT-F (Hydraulic Decoiler MT-F)
产品目录材料架系列 (Decoiler Machine)
画册查看大图
品牌川牧智能
产品规格MT-F
更新时间2019-07-18
详细信息
产品描述 Product Description
MT-F液压开卷机 Hydraulic Decoiler MT-F
产品特点 Product Features
1.适用各种卷料之送料和收料,薄板金属及非金属材料均可。
Suitable for all kinds of coil material feeding and receiving, sheet metal and non-metallic materials.

2.刹车装置松紧可调,主轴采用加强型,使材料卷轴转动更平顺,并增加负荷力。
The brake device is adjustable in tightness, and the spindle adopts the reinforced type, which makes the material reel rotate more smoothly and increases the load force.

3.采用进口零件,故障少,寿命长。
Adopt imported parts, less failure, long life.

4.扩张方式可选择手动扩张或油压扩张,可加装压料臂,变频调速,台车等。
Expansion mode can choose manual expansion or hydraulic expansion, can add pressure arm, variable frequency speed regulation, trolley, etc.

5.可根据材料情况进行定制。
Can be customized according to the material situation.
规格参数 SPECIFICATION PARAMETER
型号Model
MT-400F
MT-500F
MT-600F
MT-700F
MT-800F
MT-1000F
MT-1200F
材料宽度 Width of material (mm)
400
500
600
700
800
1000
1200
材料厚度 Thickness of material (mm)
0.1-3.2
料卷内径 Coil I.D.(mm)
450-530
料卷外径 Coil O.D.(mm)
1200
料重 Coil Weight
3000 kgs
5000 kgs
扩张方式 Expansion
液压扩张 Hydraulic Expansion
压料臂 Pressing Arm
气缸驱动压料臂 Pneumatic Type Pressing Arm
变频器 Inverter
台达,台湾 Delta, Taiwan
速度 Speed
16 m/min

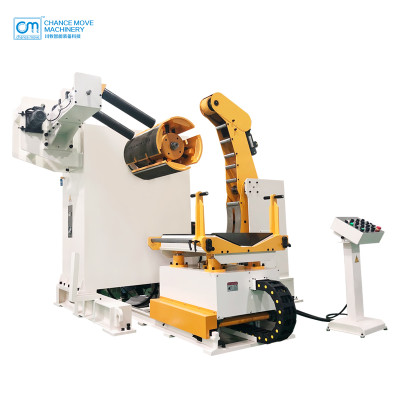

产品展示 Product Display
