产品描述 Product Description

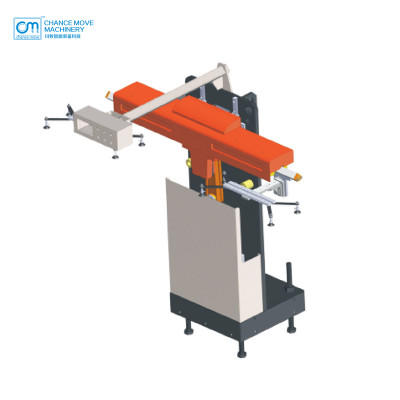

小型偏摆式机械手 Swing guide-bar Transfer
产品特点 Product Features
1.高性能驱动机构
特殊截面移送杆采用航空级超硬铝7075,具有超高的强度,可有效避免高速波振现象;移送轴采用伺服电机带动精密行星减速机、凸轮、摆杆结构驱动,高耐磨静音T型导轮做导引;升降轴采用伺服电机带动精密行星减速机、凸轮驱动,配以气动重力平衡机构。
High-performance drive machanism
Special cross-section transter lever adopts aviation grade super-hard aluminum 7075,with high strength,can effectively avoid high-speed wave vibration phenomenon; transfer axis servo motor driven precision planetary reducer.cam.pendulum structure drive.high wear-resistant mute T Guide wheel to do the guide;lift shaft servo motor driven precision planetary reducer,cam drive.
together with the pneumatic gravity balance mechanism.

2.高刚性机
机体米用中碳钢厚板整体加工成型,安装时侧面与冲床固定,整体具有完美的刚性,运动机构简单、轮巧,整体设计布局合理,即使在超高速工况下运行也不会产生振动。
High rigidity machine
The body is made of medium carbon steel plate.It is fixed on the side and the press.The whole body has perfect rigidity.The movement mechanism is simple and light.The overall design layout is rational.It will not vibrate even under ultra-high speed operation.

3.高效能AC伺服系统
各轴均采用高性能伺服驱动,升降轴附刹车,可满足高应答运转要求,并在不可预期断电或故障发生时能及时停止运转机构,兼具高速、高性能及高安全作业环境。
High-performance ACservo system
High-perfermance servo drive is adopted for each axis.The lift shaft can be braked to meet the requirement of high response operation.It can stop the running mechanism in case of unexpected power failure or failure, Both high-speed,high pertormance and high satety operation environment.
MP型参数表Parameters Table
型号Model
MP-80-10
MP-100-10
MP-120-10
MP-150-10
移送行程 Transfer travel (mm)
800
1000
1200
1500
移送精度 Transfer accuracy(mm)
±0.2
升降行程 Lifting and drop travel(mm)
65
100
最大移送负载 Maximum transfer load (Kg)
2.0x2
4.0x2
运行周期Operating cycle(Sec)
1.5
1.8
2.0
2.5
取料方式 Taking way
真空吸盘Vacuum sucker/电磁铁Electromagnet/夹瓜Clamping jaw
