Thick plate type 3-in-1 servo decoiler straightener feeder machine

Thick plate type 3-in-1 servo decoiler straightener feeder machine

Thick plate type 3-in-1 servo decoiler straightener feeder machine
Thick plate type 3-in-1 servo decoiler straightener feeder machineThick plate type 3-in-1 servo decoiler straightener feeder machineThick plate type 3-in-1 servo decoiler straightener feeder machineThick plate type 3-in-1 servo decoiler straightener feeder machineThick plate type 3-in-1 servo decoiler straightener feeder machine
CategoriesDecoiler Straightener Feeder
ModelGLK5
Update Time2021-12-03
Detail Information
Product Description

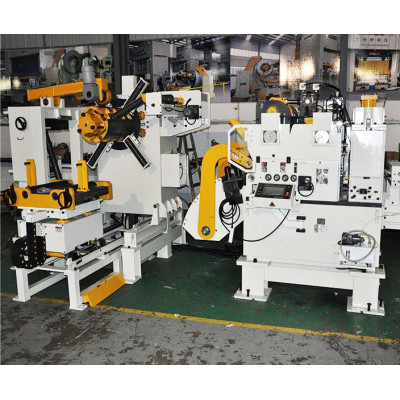

GLK5 Thick plate type 3-in-1 servo decoiler straightener feeder machine
Product Features

1.The use of nine working rollers and reinforced frame body structure, effectively overcome the high rigidity of the plate, improve the leveling accuracy of the material, so that the correction of high strength coil is possible.



2.High rigidity, high flatness.



3.Corresponding material width 600-1800mm and thickness 9.0mm.



4.The upside-down leveling roller set can be easily used for cleaning and maintenance of the roller.



5.The stepper deceleration motor can adjust the correction amount electrically, and the touch screen can input the correction amount directly, with the function of storing user parameters, which can be directly called out for use next time.


Option

1.Feeding Trolley

2.Optional Lubrication Unit

3.Hydraulic Plate Shearing Machine

4.Discharging Bracket

1.Coil Car
The material is safely and smoothly moved to the main shaft expansion and contraction structure of the uncoiler to support the material during uncoiling so as to facilitate the material belt to smoothly enter the leveler, and the coil car is equipped with a material roll dumping prevention mechanism for moving narrower material rolls.
2.Decoiler Mandrel
A platform for fixing the inner diameter of the coil to the expansion and contraction portion and, as required, the material to be gap-rotated.
3.Pressing Arm
During the operation, the material is compacted to prevent the material roll from scattering. During the automatic operation, the material pressing wheel will automatically adjust the speed along with the change of the outer diameter of the material, so that the linear velocity of the material pressing wheel and the material roll is completely matched to prevent the material roll from scattering.
4.Coil Inlet
It is used to guide the material head to enter the leveling machine so that the material can smoothly enter the leveling mechanism.
5.Control Board
The main electric appliances are Japanese - imported An Chuan servo motors and Mitsubishi control systems, as well as imported touch screens, PLC and frequency converters. The control buttons of the operation panel are made of famous products such as Fuji of Japan.
6.Straightening Part
The material shall be leveled, and the fixed-length feeding mechanism shall be made according to the requirements. The upper leveling wheel set may open the structure, and the roller surface may be cleaned during opening.
7.Handwheel
8.Outlet Support Bracket
It is used for smooth transfer between fixed-length feeding and die, and high-quality imported wear-resistant freighter is installed on the material support frame.
9. Optional Lubrication Unit
It is used for oiling the surface of the material, and the amount of oiling and oiling interval are electronically controlled and adjustable.
SPECIFICATION PARAMETER
Model
GLK5-600
GLK5-800
GLK5-1000
GLK5-1300

Thickness of material

(mm)

0.8~9.0

Width of material(mm)

70~600
70~800
70~1000
70~1300
Max Coil Weight(kg)
5000
5000
7000
10000

Coil O.D.(mm)

Φ1400

Coil I.D.(mm)

Φ508

Feeding Length(mm)

~500※

Feeding Speed(m/min)

16

Working Rollers(pcs)

5 on top / 4 on bottom

Back up Roller

Provided

Standard Feed Accuracy(mm)

±0.2mm

Main Motor(kw)

15
15
22
30

Uncoil Motor(kw)

3.7
3.7
5.5
7.5

Mandrel Expansion

Hydraulic

Power (V)

AC220V 60HZ/AC380V 60HZ

Operating Air (Mpa)

0.49

Standard Feed level(mm)

1200±100
CORRECTION ABILITY
Width
Material thickness(mm)
Model
0.8-3.2
4.0
4.5
5.0
6.0
7.0
8.0
9.0
GLK5-600
600
450
331
253
200
GLK5-800
800
648
450
331
253
200
GLK5-1000
1000
800
648
450
331
253
200
GLK5-1300
1300
1013
800
648
450
331
253
200

 The above figures are the material having yield strength of σ s=245N/mm² max ( Tensile strength of σ b=392N/mm²)

CORRECTION ABILITY(Corresponding to high tension board)
Width
Material thickness(mm)
Model
2.3
2.8
3.2
4.0
4.5
5.0
6.0
7.0
8.0
GLK5-600
533
432
374
292
257
228
180
132
101
GLK5-800
527
427
369
289
254
225
180
132
101
GLK5-1000
521
422
365
286
251
223
180
132
101
GLK5-1300
511
414
358
281
246
219
178
132
101

The above figures are the material having yield strength of σ s=613N/mm² max ( Tensile strength of σ b=980N/mm²)
