Special for thin plate type 3-in-1 servo decoiler straightener feeder machine

Special for thin plate type 3-in-1 servo decoiler straightener feeder machine

Special for thin plate type 3-in-1 servo decoiler straightener feeder machine
Special for thin plate type 3-in-1 servo decoiler straightener feeder machineSpecial for thin plate type 3-in-1 servo decoiler straightener feeder machineSpecial for thin plate type 3-in-1 servo decoiler straightener feeder machineSpecial for thin plate type 3-in-1 servo decoiler straightener feeder machine
CategoriesDecoiler Straightener Feeder
BrandChance Move Machinery Manufacturer
ModelGLK2
Update TimeDec 9,2024
Detail Information
Product Description
GLK2 Special for thin plate type 3-in-1 servo decoiler straightener feeder machine
Product Features

1.It is suitable for coil material with maximum material width of 800mm and maximum thickness of 3.2mm. This machine is integrated with uncoiling and leveling feeding three machines and working space will be minimized by innovative structure of the machine.


2.Human-computer interface is adopted to simplify operating and ease of feeding.


3.Imported servo system and ensures high precision feeding.


4.Feeding roller and leveling roller by special heat treatment, high hardness ( HRC62 °) .


5.Various options are available for different sizes of punching machines and operational requirements.Special standard is also accepted.

1.Coil Car

The material is safely and smoothly moved to the main shaft expansion and contraction structure of the uncoiler to support the material during uncoiling so as to facilitate the material belt to smoothly enter the leveler, and the trolley is equipped with a material roll dumping prevention mechanism for moving narrower material rolls.

2.Decoiler Mandrel

Used to fix the material roll on the expanded and contracted position of the main shaft of the material rack, a support table supporting the inner diameter of the material roll, and to make the main shaft rotate intermittently to uncoil and discharge material through the material ring control instruction during automatic operation.

3.Pressing Arm

Compacting the material also prevents the material roll from loosening after the band is removed, and prevents the material roll from unraveling during automatic operation.

4.Coil Inlet

It is used to position the width of the material roll and is easy to operate.

5.Control Board

The key mechanical parts and electronic components in the control system are all made of famous brands in Japan or Europe and America, so that the core technology of the products can be monitored.

6.Straightening Rollers

All correction wheels adopt GCR 15 GCr15 steel, which is used to correct the surface smoothness of the material and feed the material to the stamping equipment according to the set length and speed.

7.Handwheel

For manually adjusting the correction amount.

8.Optional Lubrication Unit

A hard chrome plating roller is installed on the material support frame to ensure the reliable transfer of the material belt to the mold after the fixed length.

9.Outlet Support Bracket

It is used for oiling the surface of the material, and the amount of oiling and oiling interval are electronically controlled and adjustable.

SPECIFICATION PARAMETER
Model
GLK2-300
GLK2-400
GLK2-500
GLK2-600
GLK2-800
Width of Material
(mm)
50-300
50-400
50-500
50-600
50-800
Thickness of Material
(mm)
0.3-3.2
Max Coil Weight(kg)
2000
2000
3000
5000
5000
Coil I.D(mm)
508
Max Coil O.D.(mm)
1200
Max.line Speed(m/min)
16
Standard Feed Accuracy (mm)
±0.2
Working Rollers(pcs)
6 on top / 5 on bottom
Standard Feed Height (mm)
1200±100
Power (V)
380VAC 60HZ
Operating Air (Mpa)
5kg/cm²
Mandrel Expansion
Hydraulic
Main Motor(kw)
AC2.9
AC2.9
AC4.4
AC4.4
AC5.5
Uncoil Expansion
AC0.75
AC1.5
AC1.5
AC2.2
AC2.2
CORRECTION ABILITY

Model
Feeding thickness(mm)
0.3
1.0
1.3
1.6
2.0
2.3
2.5
2.8
3.2



Feeding width (mm)
GLK2-300
300
250
GLK2-400
400
250
GLK2-500
500
250
GLK2-600
600
230
GLK2-700
700
200
GLK2-800
800
180
The above figures are the material having yield strength of 245N/mm² max

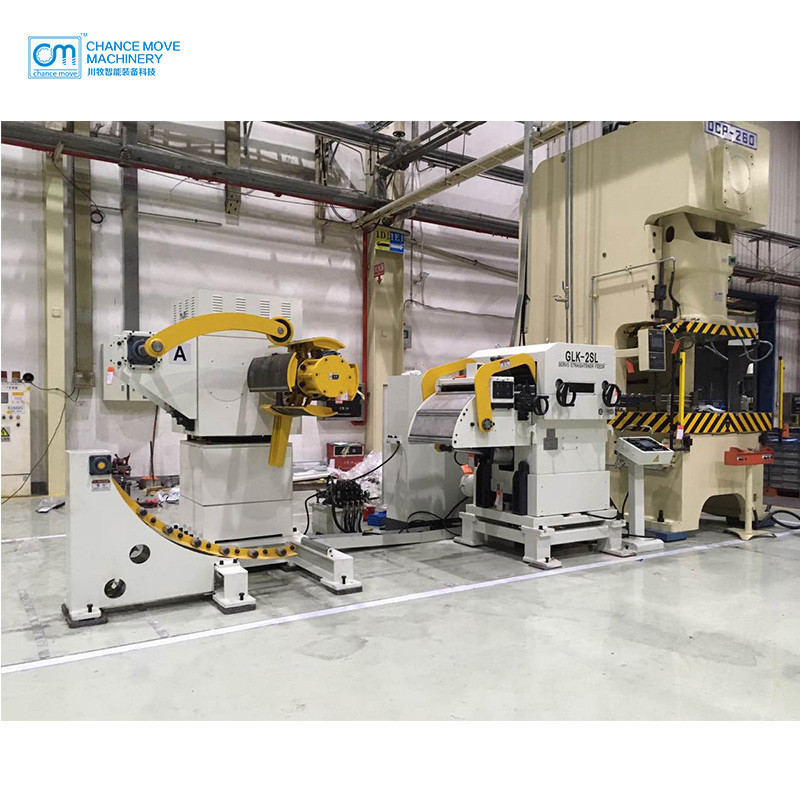

Application
GLK2-600K-J
GLK2-800F
GLK2-1200B
