Uncoiler and straightener two in one
![Uncoiler and straightener two in one](https://icdn.tradew.com/file/201811/1573249/jpg/7718682.jpg?x-oss-process=image/resize,m_pad,l_400/quality,Q_90)
![Uncoiler and straightener two in one](https://icdn.tradew.com/file/201811/1573249/jpg/7718682.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Uncoiler and straightener two in one](https://icdn.tradew.com/file/201811/1573249/jpg/7718679.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Uncoiler and straightener two in one](https://icdn.tradew.com/file/201811/1573249/jpg/7718681.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Uncoiler and straightener two in one](https://icdn.tradew.com/file/201811/1573249/jpg/8016752.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
![Uncoiler and straightener two in one](https://icdn.tradew.com/file/201811/1573249/jpg/8016753.jpg?x-oss-process=image/resize,m_pad,l_40/quality,Q_90)
Categories | Decoiler Straightener |
---|---|
Brand | Chance Move Machinery Manufacturer |
Model | GL-H |
Update Time | Jul 27,2024 |
Detail Information
Product Description
GL-H Uncoiler and straightener two in one
![](https://icdn.tradew.com/file/201811/1573249/png/7326290.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201811/1573249/png/7326291.png?x-oss-process=image/quality,Q_90)
1.Decoiler Shaft
![](https://icdn.tradew.com/file/201811/1573249/png/7326292.png?x-oss-process=image/quality,Q_90)
2.Pressing Arm
![](https://icdn.tradew.com/file/201811/1573249/png/7326293.png?x-oss-process=image/quality,Q_90)
3.Coil Supporting Arm
![](https://icdn.tradew.com/file/201811/1573249/png/7326297.png?x-oss-process=image/quality,Q_90)
4.Inlet Arm
![](https://icdn.tradew.com/file/201811/1573249/png/7326295.png?x-oss-process=image/quality,Q_90)
5.Straightening Part
![](https://icdn.tradew.com/file/201811/1573249/png/7326296.png?x-oss-process=image/quality,Q_90)
6.Coil Outlet
![](https://icdn.tradew.com/file/201811/1573249/png/7326299.png?x-oss-process=image/quality,Q_90)

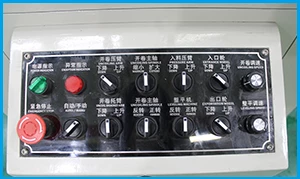

7.Control Panel
![](https://icdn.tradew.com/file/201811/1573249/png/7326300.png?x-oss-process=image/quality,Q_90)
8.Induction Sensor
![](https://icdn.tradew.com/file/201811/1573249/png/7326301.png?x-oss-process=image/quality,Q_90)
9.Hydraulic Station
SPECIFICATION PARAMETER
Model
|
GL-300H | GL-400H |
GL-500H
|
GL-600H
|
GL-800H
|
Max. Coil Width(mm) | 300 | 70-600 | 70-800 | 70-800 | 70-1300 |
Thickness of Material(mm) | 0.5-4.5 | ||||
Coil I.D.(mm) | 460-520 | ||||
Coil O.D.(mm)
|
1200 |
||||
Coil Weight(kg)
|
2000 | 2000 |
3000
|
5000
|
5000 |
Working Rollers
|
Ø68mm*7pcs |
||||
Uncoil Motor | 1.5 Kw | ||||
Uncoil Expansion | Manual Expansion (Hydraulic for optional) | Hydraulic Expansion | |||
Pressing Arm | Option | ||||
Levelling Motor | 2.2 Kw | 2.2 Kw | 4.4 Kw | 4.4 Kw | 5.5 Kw |
Levelling Adjustment | Eccentric turbine worm adjusting | ||||
Feeding Speed | 15m/min |
GL-500H
![](https://icdn.tradew.com/file/201811/1573249/jpg/8016752.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201811/1573249/jpg/8016753.jpg?x-oss-process=image/quality,Q_90)
